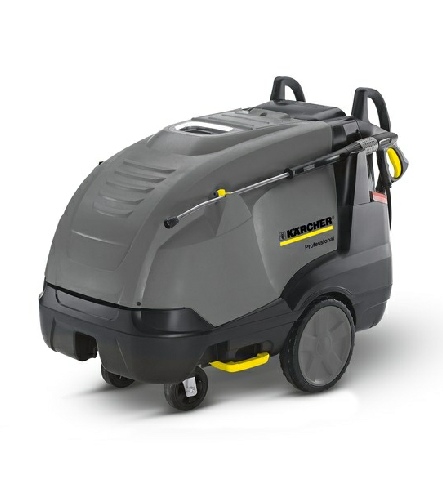

KÄRCHER HDS 12/18-4 S Classic
The hot water high-pressure cleaners of the new middle- and super-class convince with their 6 main features.
1. Environmental protection
Greater efficiency with the new ECO mode, service switch for controlling water hardness, turbo fan, precision detergent metering, optimised burner technology and a high-efficiency pump.
2. User friendliness
This is ensured by a central, clearly arranged control panel designed for intuitive operation, a spray lance holder, LED display, an integral, low-friction hose reel for 20 metres hose that swivels through 180°, and much more.
3. Cleaning performance
Highly efficient cleaning is guaranteed by patented nozzle technology, ceramic pistons, turbo fan as well as increased pump efficiency. Accessories are optimised for specific applications and designed to exactly suit customer requirements.
4. Mobility
The mobility concept features two casters, large rubber-tyred wheels, ergonomic handles, lifting points for handling with a forklift, lashing rings and a recessed tread for tilting the machine to guarantee maximum manoeuvrability.
5. Reliability
Guaranteed by flue gas monitoring, a corrosion-proof, flexural stiff, robust chassis, three-piston axial pump with ceramic pistons, heat resistant flue outlet, and much more.
6. Service friendliness
Easy access to all components that require servicing and a service switch to call up operating data at any time for troubleshooting.
Technical Specifications
Exhaust gas temperature limiter
Anti-twist system (AVS), Low fuel cut-out, Steam mode
Three piston axial pump, with ceramic piston
Pressure switch control
Trigger gun with soft grip, Optional two-lance operation
Spray lance, Power nozzle. SDS system
Electronic service control
Infinitely variable pressure and water flow control on the unit
Dry running protection, Scale inhibitor, 2 detergent tanks
Low-speed 4-pole motor
Part No 1.071-629.0
Dimensions (L x W x H) 1330 x 750 x 1060 mm
Power cable - 5 M
Power rating 8,4 kW
Fuel tank 25 Lt
Pressure 30-180/3-18 bar/MPa
Flow rate 600-1200 l/h
Weight 178 kg
CA tank 20 Lt
Current type 3/400/50 Ph/V/Hz
Tank capacity 10 l
Max. Temperature (feed 12 °C) 80-155 °C
Consumption fuel oil 7,7 kg/h
